Miller 8183 6 ft Cross-Arm Anchorage Strap

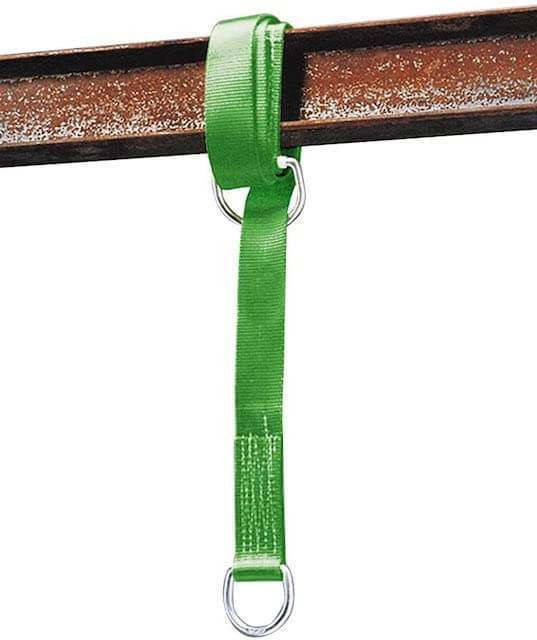

The Miller 8183/6FTGN cross-arm strap provides a temporary anchorage connection around a suitable beam or other approved structural member. This green, 6-foot webbing strap has differently sized steel D-rings that allow the smaller ring to pass through the larger ring when installed according to the manufacturer’s instructions.
S8183/6FTGN
8183/6FTGN
6 ft
Green
Heavy-duty webbing
2 in and 3 in steel
Temporary anchorage connector
Key Features
- Flexible webbing wraps around a compatible structural member.
- Two steel D-rings support the specified pass-through installation.
- Portable construction suits temporary work locations with an assessed anchor structure.
- A separate anchorage connector provides a defined connection point for compatible fall-protection equipment.
Common Uses
- Construction and structural maintenance around suitable beams.
- Industrial plant work with approved temporary anchorage locations.
- Elevated maintenance where a wraparound connector is permitted by the site plan.
Selection and Use
Six feet is the strap length, not a universal maximum beam size. Allow enough length for the specified wrap and connection without loading the hardware against an edge. Inspect the proposed member for strength, geometry, surface damage and sharp edges. A pipe, railing or scaffold component is not a safe anchor solely because the strap fits around it.
Standards and Safety
Miller specification SP423 lists a 400 lb maximum capacity and an ANSI user range of 130–310 lb. Total user weight includes clothing, tools and equipment; follow the supplied label and the lowest limit in the connected system. The sheet lists 5,000 lb minimum tensile strength for the webbing and D-rings. That figure is not a worker capacity and does not verify the strength of the supporting structure.
Employers must select compatible components, provide training and plan for prompt rescue. OSHA 1926.502 addresses construction fall-protection systems; OSHA 1910.140 applies to general-industry personal fall protection. These are employer requirements, not OSHA product approvals.
Manufacturer Documents
FAQ
Does the strap make any beam an approved anchor?
No. The structure and installation require a separate assessment. Under OSHA’s construction rule, fall-arrest anchorage must meet the specified strength requirement or the qualified-person design alternative.
Is this a shock-absorbing lanyard?
No. It is an anchorage connector. Use a compatible connecting subsystem and full-body harness selected for the task.
Can it be placed over sharp edges?
Do not assume it can. Follow Miller’s edge and abrasion precautions and reject an unsuitable installation.
