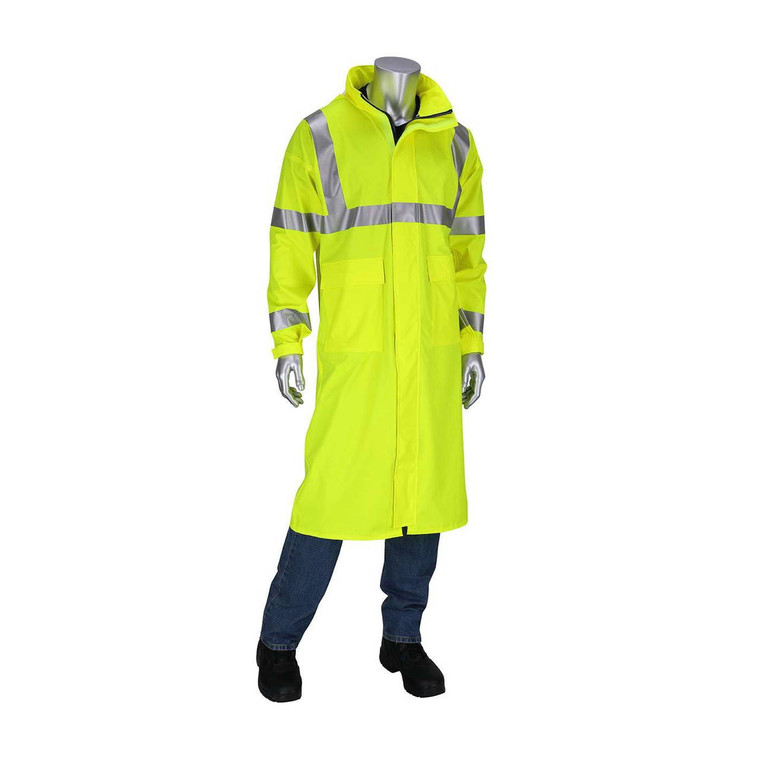

Arc-Rated Waterproof Rainwear with Type R Class 3 Visibility
The PIP 355-2505AR combines 48-inch raincoat coverage with an ATPV of 14 cal/cm² and ANSI/ISEA 107-2020 Type R Class 3 visibility. It is intended for wet work environments where the task assessment calls for arc-rated, flame-resistant rainwear.
PIP describes its 10.3-ounce cotton-jersey shell with an FR polyurethane coating as waterproof and breathable. An attached hood, reflective trim and covered front closure support outdoor work. Choose a size that accommodates the required clothing layers without restricting movement.
Quick Buying Details
Key Features
- Waterproof, breathable AR/FR shell
- Attached hood and extended coverage
- Heat-applied FR reflective tape
- FR resin zipper with storm flap
- Two lower flap pockets
- FR hook-and-loop cuff adjustment
Common Applications
- Electrical contracting
- Petrochemical operations
- Mining and wind energy
- Emergency services
- Construction tasks requiring AR/FR rainwear
Manufacturer-Listed Standards
PIP lists NFPA 70E, ASTM F1891, ASTM D6413 and ASTM F1959 alongside the visibility classification. These references address different aspects of electrical safety, rainwear and testing; they do not make the coat suitable for every electrical or flame exposure. NFPA 70E is a workplace electrical-safety standard, not an independent product certification.
OSHA Arc-Flash Selection Requirements
For work covered by OSHA 1910.269(l)(8), employers must assess flame and arc hazards and estimate incident heat energy. Where required, arc-rated clothing and equipment must meet or exceed that estimated exposure, subject to the rule’s provisions.
Select the complete PPE system through the employer’s electrical-safety program. This raincoat does not provide electrical shock insulation, and its attached hood is not a substitute for required arc-rated face and head protection. Confirm compatibility with harnesses, gloves and every clothing layer; do not add individual garment arc ratings together.
Care and Inspection
The current PIP specification states Do Not Wash. Follow the sewn-in label and current manufacturer instructions. Inspect closures, coating and reflective trim before use. Remove damaged or contaminated garments from service. Older documents contain different ratings and care directions; match documentation to the supplied garment.
Manufacturer Documentation
PIP 355-2505AR manufacturer specification sheet (PDF)
Browse industrial rain gear, flame-resistant clothing, high-visibility workwear, and oil and gas PPE solutions.
FAQ
- Does Class 3 describe arc protection? No. It describes high-visibility apparel classification. The separate arc rating is 14 cal/cm² ATPV.
- Does waterproof mean chemical-resistant? No. Rain protection does not establish chemical permeation resistance.
- Can I machine wash this coat? The current sheet says Do Not Wash. Consult PIP if the garment label differs.
- Is the coat a complete arc-flash kit? No. Other body areas and hazards require protection selected for the task.
